Aluminum sheets EN AW 1050A

EN AW 1050A

Aluminum sheets EN AW 1050 are widely used due to their mechanical properties. They are used in the manufacture: traffic signs, tiles, circuit boards, cladding, heat exchangers, food industry, hydraulics, use at elevated operating temperatures, the use of low temperature, truck spoilers, transformers, lights.

k	DIN	STN	Material No.	Chem. symbol
AW 1050 A	Al 99,5	42 4005	3.0255	Al99,5

Chemical properties / Percentage of alloying elements (%) *

Si	Fe	Cu	Mn	Cr	Zn	Ti
0.25	0.40	0.05	0.01	0.01	0.07	0.05

* Aluminum and normal impurities form the rest

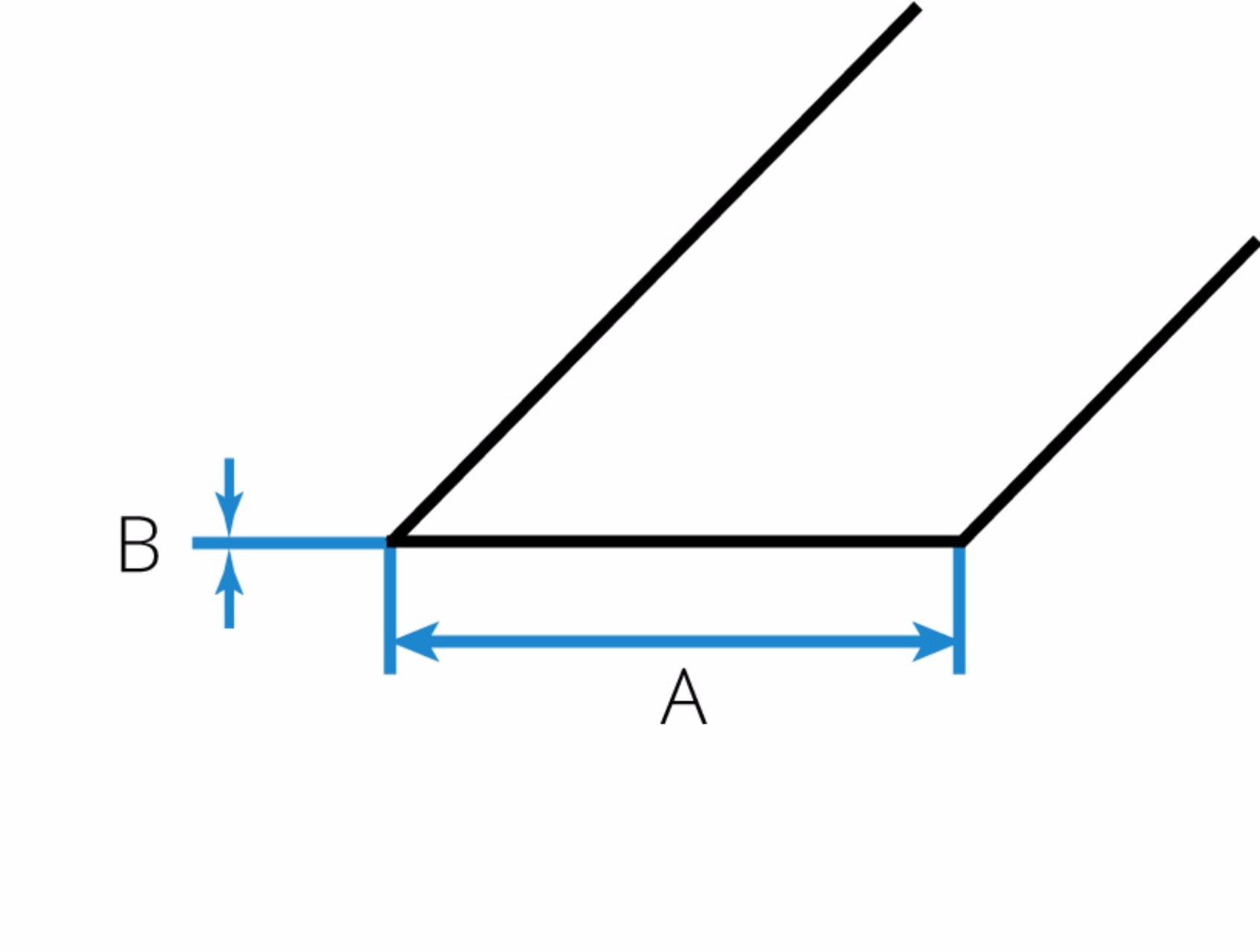

Thickness mm	Width mm	Length mm	weight kg/m2
0.80	1000	2000	2.16
1.00	1000	2000	2.70
	1250	2500	2.70
	1500	3000	2.70
1.50	1000	2000	4.05
	1250	2500	4.05
	1500	3000	4.05
2.00	1000	2000	5.40
	1250	2500	5.40
	1500	3000	5.40
2.50	1000	2000	6.75
	1250	2500	6.75
	1500	3000	6.75
3.00	1000	2000	8.10
	1250	2500	8.10
	1500	3000	8.10

Suitability of use:

Cold forming/ Thermoforming	Welding	Corrosion resistance	Anodizing	Cutting	Stability after machining
very well	very well	medium	medium	bad	medium/bad

Cold forming/

Thermoforming

Welding

Corrosion

resistance

Anodizing

Cutting

Stability after

machining

very well

medium

bad

medium/bad

Mechanical properties

State	Thickness (mm)	Strength Rm (MPa)	Yield strength Rp 0,2 (MPa)	Fold		Hardness
	from - to	min-max	min	180°	90°	HBS
H14	0,2 - 0,5	105 - 145	85	1,0 t	0 t	34
	0,5 - 1,5	105 - 145	85	1,0 t	0,5t	34
	1,5 - 3,0	105 - 145	85	1,0 t	1,0t	34
	3,0 - 6,0	105 - 145	85	-	1,5t	34
	6,0 - 25,0	105 - 145	85	-	2.5	34
	0,2 - 0,5	105 - 145	75	1,0 t	0 t	33
H24	0,5 - 1,5	105 - 145	75	1,0 t	0,5t	33
	1,5 - 3,0	105 - 145	75	1,0 t	1,0t	33
	3,0 - 6,0	105 - 145	75	1,5 t	1,5t	33
	6,0 - 12,5	105 - 145	75	-	2,5t	33
