EN AW 5754

EN AW 5754

The cost effective alternative of aluminum sheet for all the uses where is   necessary the high demands on machining and strength.

Applications : engineering, manufacturing plant, yacht construction, deployment, working at elevated temperatures.









EN DIN STN Material No. Chem. symbol

AW 5754

AlMg3

42 4413

3.3535

AlMg3







Chemical properties  / Percentage of alloying elements (%) *



S I F E C U M N

Mg

C R

Zn

other

0.40

0.40

0.10

0.50

2,6 - 3,6

0.30

0.20

0.40



* Aluminum and normal impurities form the rest







Suitability of use



Cold forming/

Thermoforming

Welding


Corrosion

resistance

Anodizing Cutting

Stability after

machining

good

very well

very well

good

bad

good

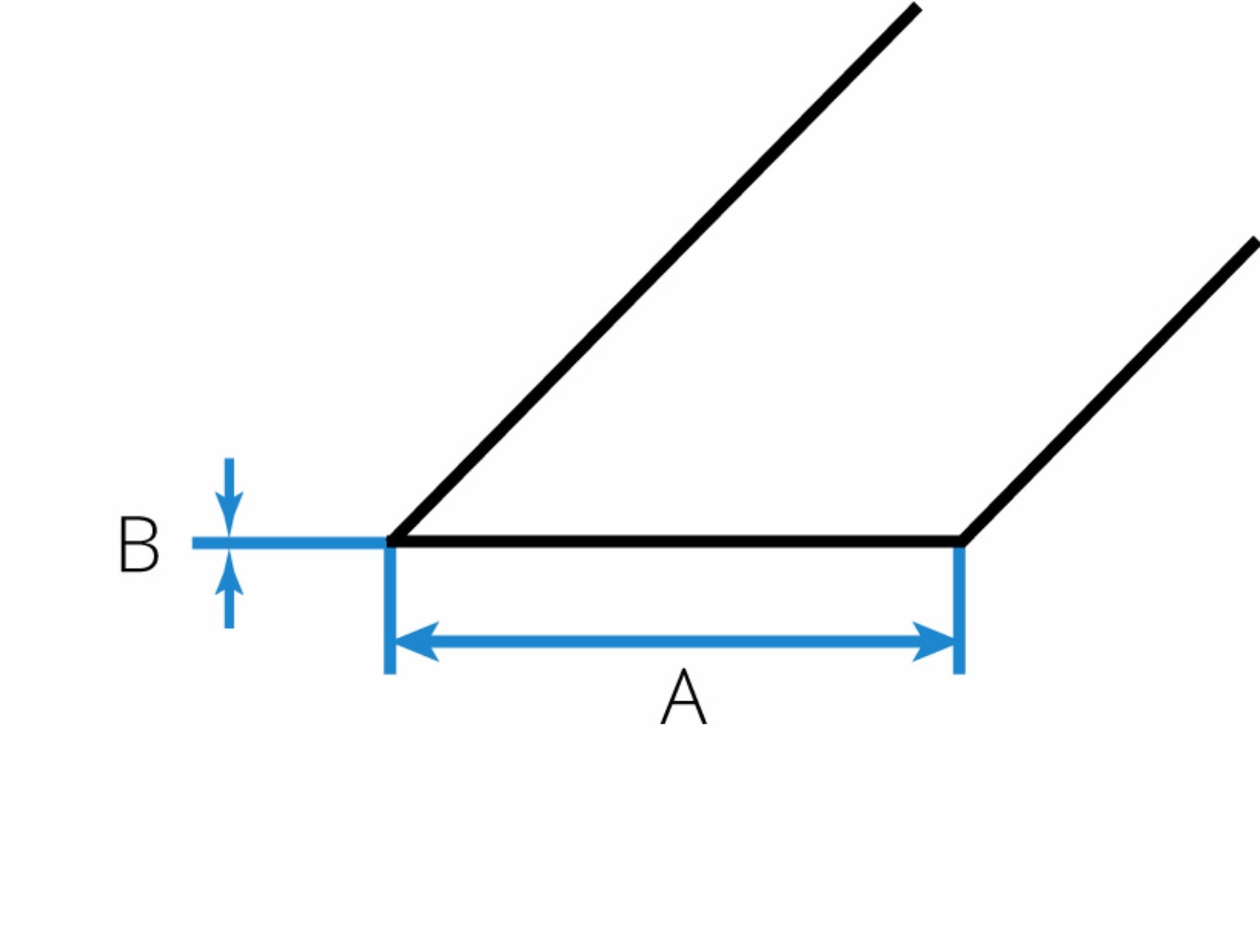

Thickness

mm

Width

mm

Length

mm

weight

kg/m2

0.80 1000 2000 2.16
1.00 1000 2000 2.70
1250 2500
1500 3000
1.50 1000 2000 4.05
1250 2500
1500 3000
2.00 1000 2000 5.40
1250 2500
1500 3000
2.50 1000 2000 6.75
1250 2500
1500 3000
3.00 1000 2000 8.10
1250 2500
1500 3000
4.00 1000 2000 10.80
1250 2500
1500 3000
5.00 1000 2000 13.50
  1250 2500
  1500 3000
6.00 1000 2000 16.20
1250 2500
1500 3000









Mechanical properties



State

Thickness (mm)

from - to

Strength Rm (MPa)

min-max

Yield strength Rp 0,2 (MPa)

min

Fold

Hardness

HBS

180° 90°
O/H111 1,5 - 3,0 190 - 240 80 1 t 1 t 52
3,0 - 6,0 190 - 240 80 1 t 1 t 52
6,0 - 12,5 190 - 240 80 - 2 t 52
12,5 - 100,0 190 - 240 80 - - 52
