EN AW 5083

EN AW 5083

The mechanical properties are at medium level. There are many potencial uses due to good quality, strength and resistance to corrosion and seawather.

Applications: mechanical engineering, shipbuilding, welded construction, foaming molds, production equipment, production vehicles.









EN DIN STN Material No. Chem. symbol
AW 5083 AlMg4,5Mn 42 4415 3.3547 AlMg4,5Mn0,7







Chemical properties  / Percentage of alloying elements (%) *



S I F E C U M N MG C R Z N T I other
0,40 0,40 0,10 0,4-0,1 4,0-4,9 0,05-0,25 0,25 - 0,35



* Aluminum and normal impurities form the rest







Suitability of use



Cold forming/

Thermoforming

Welding


Corrosion

resistance

Anodizing Cutting

Stability after

machining

medium

very well

very well

good good good

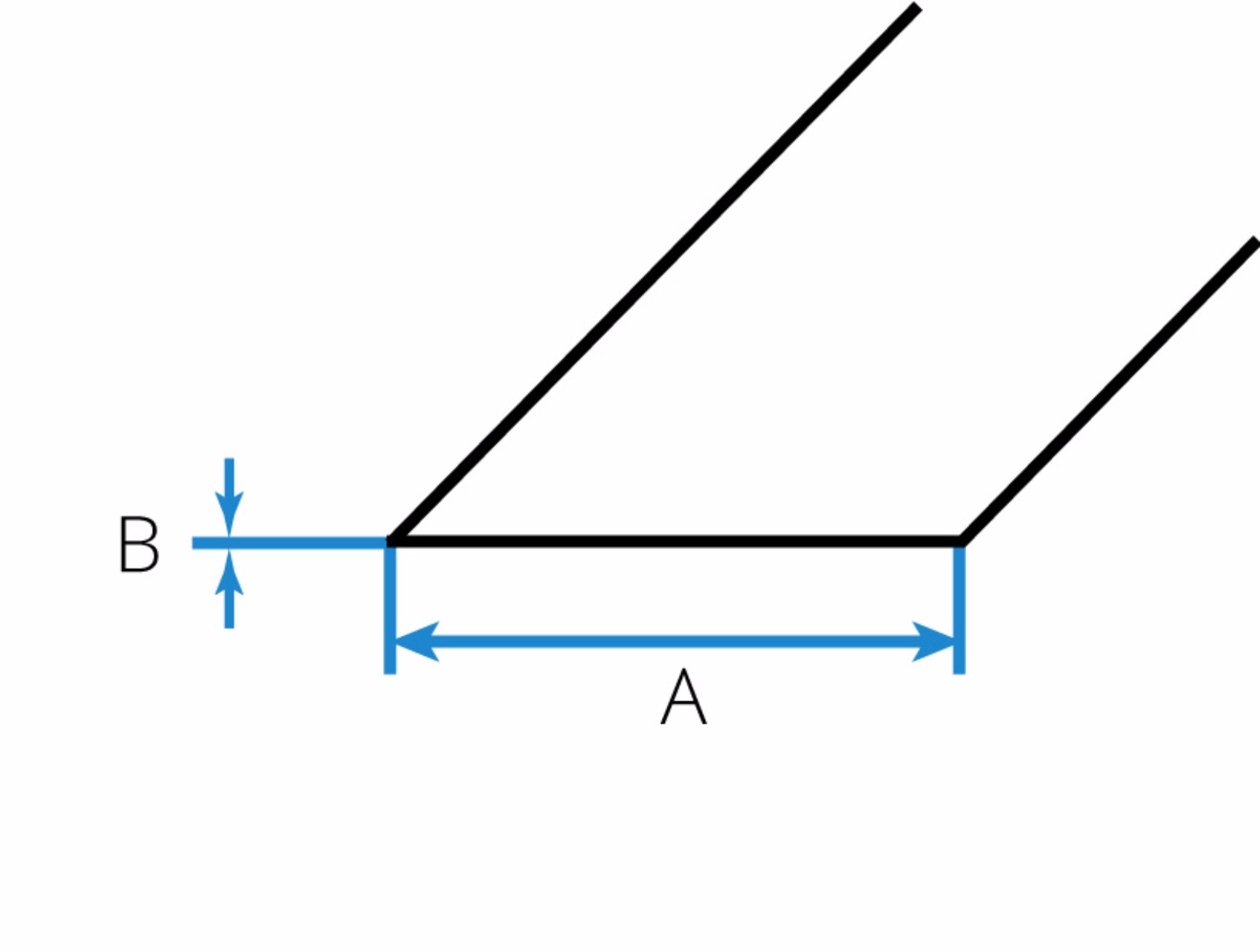

Thickness

mm

Width

mm

Length

mm

weight

kg/m2

4.00

1000

2000

10.80

1250 2500
1500 3000
5.00 1000 2000 13.50
1250 2500
1500 3000
6.00 1000 2000 16.20
1250 2500
1500 3000
8.00 1000 2000 21.60
1250 2500
1500 3000
10.00 1000 2000 27.00
1250 2500
1500 3000
12.00 1000 2000 32.40
1250 2500
1500 3000
15.00 1000 2000 40.50
1250 2500
1500 3000
20.00 1000 2000 54.00
1250 2500
1500 3000
25.00 1000 2000 67.50
1250 2500
1500 3000
30.00 1000 2000 81.00
1250 2500
1500 3000
35.00 1000 2000 94.50
1250 2500
1500 3000
40.00 1000 2000 108.00
1250 2500
1500 3000
45.00 1000 2000
50.00 1000 2000 135.00
1250 2500
60.00 1000 2000 162.00
70.00 1000 2000 189.00
80.00 1000 2000 216.00
90.00 1000 2000 243.00
100.00 1000 1800 270.00
120.00 1000 2000 324.00
150.00 1000 2000 405.00









Mechanical properties



State

Thickness (mm)

from - to

Strength Rm (MPa)

min-max

Yield strength Rp 0,2 (MPa)

min

Fold

Hardness

HBS

180° 90°
O/H111 3,0 - 6,0 275 - 350 125 - 1,5 t 75
6,0 - 12,5 275 - 350 125 - 2,5 t 75
12,5 - 50,0 275 - 350 125 - - 75
50,0 - 80,0 270 - 345 115 - - 73
